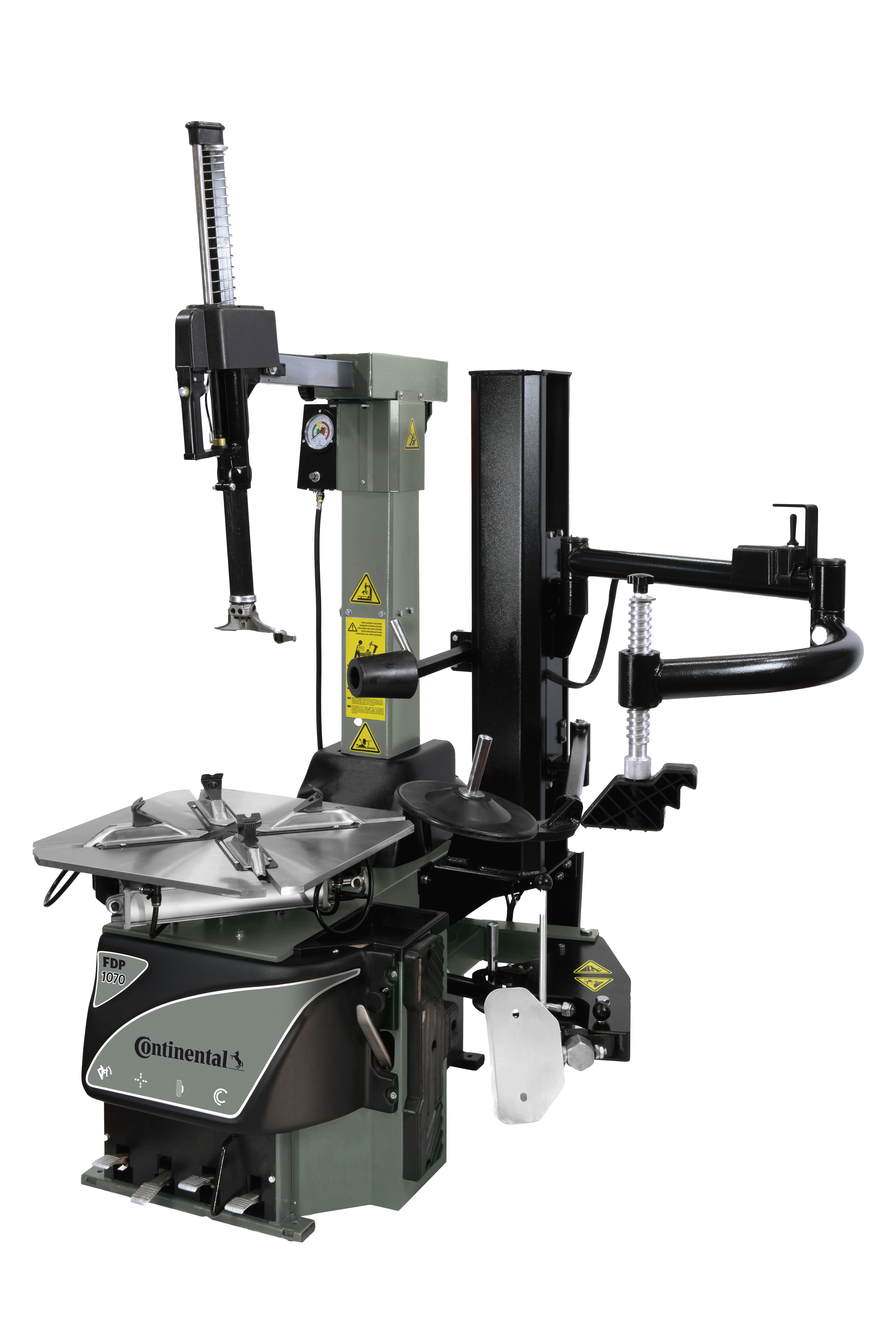

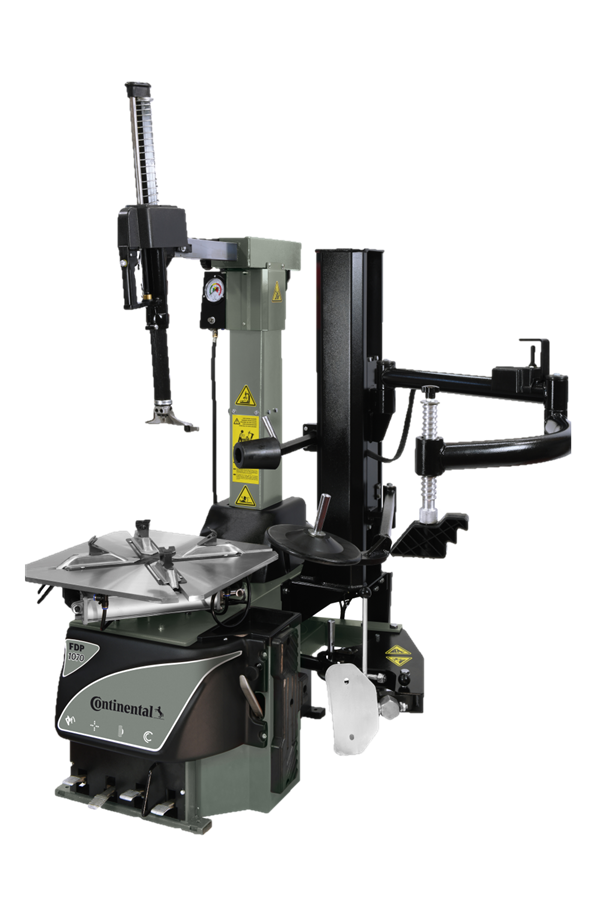

FDP 1070 Tyre Changer
Object reference not set to an instance of an object.
-
Continental Tyre Changers, born in Correggio, Italy. Easy to operate, affordable, yet versatile equipment for your workshop.
- Features:
FDP1070
- Automatic tyre changer for cars and light commercial vehicles, suitable for low profile and run flat tyre as well as for sport alloy rims.
- Smart Rim capacity form 12” to 26”
- Pneumatic control for up/down operating mounting head
- A pneumatic system which raises the arm, the column can be lifted higher enabling this way to operate on wheels of 15” width.
- Pneumatic tilting column by pedal control
- The bead breaker offers two different positions in order to facilitate the bead-breaking operation on wheels of all diameters.
- Double acting bead breaker cylinder
- Equipped with the special built in device for tubeless inflation, pedal operated, with air tank
- Inverter technology for variable rotation speed, controlled by the pedal
- Plastic protection on the mounting head, jaws and bead breaker blade to prevent damage to alloy rims.
Technical Specifications
| Technical Specification | FDP1070 | FDP1050 |
|---|---|---|
| Max wheel width | 400mm (15”) | 340mm (13”) |
| Outside locking capacity | 12”-24” | 10” - 22” |
| Inside locking capacity | 15-26” | 12” - 24” |
| Working pressure | 8 - 10 bar | 8 - 10 bar |
| Bead breaker power | 3000Kg | 2500Kg |
| Bead breaker max opening | 390mm | 390mm |
| Rotation speed | 6 - 12rpm | 6 - 12rpm |
| Max wheel diameter | 1100mm (43”) | 1000mm (39”) |
| Power supply | 230v 50 - 60hz 1ph | 230v 50 - 60hz 1ph |
| Net weight | 329Kg | 329Kg |
| Product code | ||
|---|---|---|
| 2910003226600 | FDP1070 | Tyre Changer FDP1070 |
| Feature Comparison | FDP1070 | FDP1050 |
|---|---|---|
| Carry out a small number of replacement tyres | x | |
| Carry out a high number of replacement tyres | x | |
| Meet growing demands, future proof my business | x | |
| A second product for peak demands | x | |
| Able to work on cars & light vans including low profile and run flats | x | x |
| Possibility to work on motorcycles | x | x |
| Equipment that is easy to use and quick to set up | x | x |
| Quality equipment backed by a comprehensive warranty. (3 Year) | x | x |
| User-Friendly Controls | x | x |
| Maximum efficiency, quick capture of distance, diameter and width data using Sonar | ||
| Split weight and hidden weight for aesthetically pleasing finish | ||
| Bead breaker and wheel protection to prevent damage | x | x |
| Easy mounting and demounting | x | x |
| Precise ergonomic foot pedals | x | x |
| Optional accessories may be required for some features |
