Axle Play Detector
APD1850 Axle Play Detector
The APD1850 electro-hydraulic commercial vehicle play detector is used to check the condition of the axles and suspension without the need of jacking up the vehicle. Crypton's high quality equipment is sourced in Europe and supported by our own dedicated team of sales managers, engineers and technical service support.

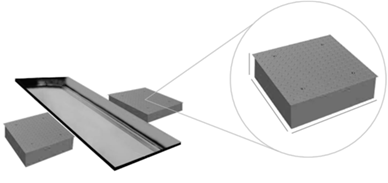

In-ground play detector
Consisting of two strong steel plates, one for each wheel, which are recessed into the ground. The plates are moved in different directions by means of a remote control.
Standard Equipment Optional Equipment
- 2 electro-hydraulic plates
- Hydraulic unit
- Electric box
- Torch/Controller Technical
Data and Dimensions
Max axle load 18 T
Power engine 2.2 kW
Voltage 400 V - 50 Hz
Thermal protector 4.5 - 6.3 A
LED lamp 12 V - 6 W
Tank capacity 15 – 18l
Pushing force 30,000 N
Side shift 105 mm
Displacement speed 6.4 cm/s
Frame dimensions 705 x 705 x 165 mm
Optional equipment
Hydraulic unit desk: 420 x 600 x 1,460 mm 92 kg
